How to Generate Pcap File using Radio Messages Window in Contiki Cooja Simulator?

Generate Pcap File Using Radio Messages Window In Contiki Cooja Simulator

Contiki Cooja Simulator Steps to Generate Pcap File using Radio Messages Window

Description:

   PCAP files are data files created using a program. These files contain packet data of a network and are used to analyze the network characteristics. They also contribute to controlling the network traffic and determining network status.

Step-1

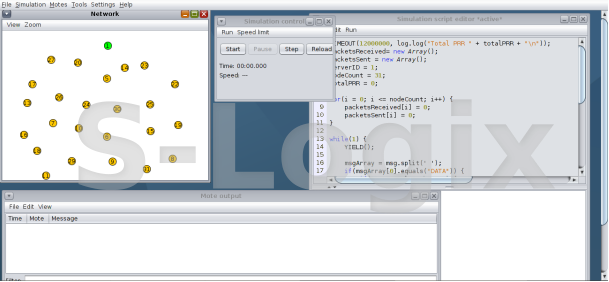

  Set up the network simulation environment in cooja simulator.

Set up the network simulation environment in cooja simulator
Step-2

 Open the radio messages tool from the tools menu.

The radio messages tool from the tools menu
Step-3

 Enable the pcap with analyzer menu in the radio messages window.

Enable the pcap with analyzer menu in the radio messages window
Step-4

 Start the simulation.

 After finishing the simulation, the pcap file was saved in the below location
contiki/tools/cooja/build

Finishing the simulation
