How to Implement a Multi-Datacenter Container Simulation in CloudSim?

multi-datacenter container simulation in CloudSim

Condition for Implement a Multi-Datacenter Container Simulation in CloudSim

  • Description:
    The provided code demonstrates a multi-datacenter container simulation using CloudSim. It sets up three datacenters with varying performance characteristics (high, medium, and low), each configured with hosts having different CPU (MIPS), RAM, processing elements (PEs), and bandwidth capacities. The simulation initializes a broker to manage VM and container allocation across these datacenters, ensuring that workloads are efficiently distributed.

    Virtual machines (VMs) are created and allocated to the broker, and containers are created on these VMs. Cloudlets representing computational tasks are generated with varying lengths to simulate diverse workloads. Crucially, manual binding ensures that containers are assigned to VMs and cloudlets are assigned to containers.

    The simulation uses a PowerContainerVmAllocationPolicyMigrationStaticThreshold for VM allocation with migration policies and monitors resource usage. At the end, the simulation prints detailed results, including workload distribution across datacenters, cloudlet execution status, execution time, and cost analysis, providing insights into performance and resource utilization across multiple datacenters. This setup is particularly useful for evaluating scheduling policies, load balancing, and resource optimization in cloud environments with heterogeneous datacenter configurations.
Sample Code
  • 1. SourceCode1:
    package MultiDatacenter;

    import org.cloudbus.cloudsim.*;
    import org.cloudbus.cloudsim.container.core.*;
    import org.cloudbus.cloudsim.container.resourceAllocators.*;
    import org.cloudbus.cloudsim.container.vmSelectionPolicies.*;
    import org.cloudbus.cloudsim.container.hostSelectionPolicies.*;
    import org.cloudbus.cloudsim.core.CloudSim;

    import java.util.*;
    import org.cloudbus.cloudsim.container.resourceAllocatorMigrationEnabled
    .PowerContainerVmAllocationPolicyMigrationStaticThreshold;

    public class MultiDatacenterSimulation {

    public static void main(String[] args) {
    Log.printLine("Starting Multi-Datacenter Container Simulation...");

    try {
    // Initialize CloudSim
    int numUsers = 1;
    Calendar calendar = Calendar.getInstance();
    CloudSim.init(numUsers, calendar, false);

    // Create first datacenter
    List hostList1 = MultiDatacenterHelper.createHostList(4, "DC1");
    ContainerVmAllocationPolicy vmAllocationPolicy1 = new PowerContainerVmAllocationPolicyMigrationStaticThreshold(
    hostList1, new PowerContainerVmSelectionPolicyMinimumMigrationTime(), 0.8);
    ContainerAllocationPolicy containerAllocationPolicy1 = new PowerContainerAllocationPolicySimple();
    ContainerDatacenter datacenter1 = MultiDatacenterHelper.createDatacenter(
    "Datacenter_1", hostList1, vmAllocationPolicy1, containerAllocationPolicy1);

    // Create second datacenter
    List hostList2 = MultiDatacenterHelper.createHostList(3, "DC2");
    ContainerVmAllocationPolicy vmAllocationPolicy2 = new PowerContainerVmAllocationPolicyMigrationStaticThreshold(
    hostList2, new PowerContainerVmSelectionPolicyMinimumMigrationTime(), 0.75);
    ContainerAllocationPolicy containerAllocationPolicy2 = new PowerContainerAllocationPolicySimple();
    ContainerDatacenter datacenter2 = MultiDatacenterHelper.createDatacenter(
    "Datacenter_2", hostList2, vmAllocationPolicy2, containerAllocationPolicy2);

    // Create third datacenter (optional)
    List hostList3 = MultiDatacenterHelper.createHostList(2, "DC3");
    ContainerVmAllocationPolicy vmAllocationPolicy3 = new PowerContainerVmAllocationPolicyMigrationStaticThreshold(
    hostList3, new PowerContainerVmSelectionPolicyMinimumMigrationTime(), 0.85);
    ContainerAllocationPolicy containerAllocationPolicy3 = new PowerContainerAllocationPolicySimple();
    ContainerDatacenter datacenter3 = MultiDatacenterHelper.createDatacenter(
    "Datacenter_3", hostList3, vmAllocationPolicy3, containerAllocationPolicy3);

    // Create broker with inter-datacenter load balancing
    ContainerDatacenterBroker broker = new ContainerDatacenterBroker("MultiDC_Broker", 80);

    // Create VMs, Containers and Cloudlets
    List vmList = MultiDatacenterHelper.createVmList(broker.getId(), 12);
    List containerList = MultiDatacenterHelper.createContainerList(broker.getId(), 24);
    List cloudletList = MultiDatacenterHelper.createCloudletList(broker.getId(), 24);

    // Submit to broker - workload will be distributed across datacenters
    // Submit to broker - workload will be distributed across datacenters
    broker.submitVmList(vmList);
    broker.submitContainerList(containerList);
    broker.submitCloudletList(cloudletList);

    // Manually bind Containers to VMs (important!)
    for (int i = 0; i < containerList.size(); i++) {
    broker.bindCloudletToContainer(containerList.get(i).getId(), vmList.get(i % vmList.size()).getId());
    }

    // Manually bind Cloudlets to Containers
    for (int i = 0; i < cloudletList.size(); i++) {
    broker.bindCloudletToContainer(cloudletList.get(i).getContainerId(), containerList.get(i % containerList.size()).getId());
    }

    // Increase runtime to ensure full execution
    CloudSim.terminateSimulation(100000.0);

    // Start Simulation
    CloudSim.startSimulation();

    // Get results
    List newList = broker.getCloudletReceivedList();
    CloudSim.stopSimulation();

    // Print results with datacenter information
    MultiDatacenterHelper.printMultiDCResults(newList,
    Arrays.asList(datacenter1, datacenter2, datacenter3));

    Log.printLine("Multi-Datacenter Simulation finished!");
    } catch (Exception e) {
    e.printStackTrace();
    Log.printLine("Error during simulation: " + e.getMessage());
    }
    }
    }

    2. SourceCode2:
    package MultiDatacenter;

    import org.cloudbus.cloudsim.*;
    import org.cloudbus.cloudsim.container.core.*;
    import org.cloudbus.cloudsim.container.containerProvisioners.*;
    import org.cloudbus.cloudsim.container.containerVmProvisioners.*;
    import org.cloudbus.cloudsim.container.schedulers.*;
    import org.cloudbus.cloudsim.container.utils.IDs;
    import org.cloudbus.cloudsim.container.resourceAllocators.*;

    import java.text.DecimalFormat;
    import java.util.*;
    import java.util.stream.Collectors;
    import org.cloudbus.cloudsim.power.models.PowerModelLinear;

    public class MultiDatacenterHelper {

    // Different configurations for different datacenters
    private static final Map DC_CONFIGS = new HashMap<>();

    static {
    // High-performance datacenter
    DC_CONFIGS.put("DC1", new DCConfig(
    new int[]{3000, 4000, 5000}, // MIPS
    new int[]{16384, 32768, 65536}, // RAM (MB)
    new int[]{8, 12, 16}, // PEs
    new int[]{20000, 25000, 30000} // BW
    ));

    // Medium-performance datacenter
    DC_CONFIGS.put("DC2", new DCConfig(
    new int[]{2000, 3000, 4000},
    new int[]{8192, 16384, 32768},
    new int[]{4, 8, 12},
    new int[]{15000, 20000, 25000}
    ));

    // Low-performance datacenter
    DC_CONFIGS.put("DC3", new DCConfig(
    new int[]{1000, 2000, 3000},
    new int[]{4096, 8192, 16384},
    new int[]{2, 4, 8},
    new int[]{10000, 15000, 20000}
    ));
    }

    // VM specifications
    private static final int[] VM_MIPS = {1000, 2000, 3000};
    private static final int[] VM_RAM = {1024, 2048, 4096};
    private static final int[] VM_PES = {1, 2, 4};
    private static final int VM_BW = 2000;
    private static final int VM_SIZE = 10000;

    // Container specifications
    private static final int[] CONTAINER_MIPS = {500, 750, 1000};
    private static final int[] CONTAINER_RAM = {256, 512, 1024};
    private static final int[] CONTAINER_PES = {1, 1, 2};
    private static final int CONTAINER_BW = 1000;

    // Cloudlet specifications
    private static final int CLOUDLET_LENGTH = 15000;
    private static final int CLOUDLET_PES = 1;
    private static final int CLOUDLET_FILE_SIZE = 500;
    private static final int CLOUDLET_OUTPUT_SIZE = 500;

    public static List createHostList(int numberOfHosts, String dcType) {
    List hostList = new ArrayList<>();
    DCConfig config = DC_CONFIGS.getOrDefault(dcType, DC_CONFIGS.get("DC1"));

    for (int i = 0; i < numberOfHosts; i++) {
    int hostType = i % config.mips.length;

    List peList = new ArrayList<>();
    for (int j = 0; j < config.pes[hostType]; j++) {
    peList.add(new ContainerVmPe(j,
    new ContainerVmPeProvisionerSimple(config.mips[hostType])));
    }

    ContainerHost host = new PowerContainerHostUtilizationHistory(
    IDs.pollId(ContainerHost.class),
    new ContainerVmRamProvisionerSimple(config.ram[hostType]),
    new ContainerVmBwProvisionerSimple(config.bw[hostType]),
    2000000, // storage
    peList,
    new ContainerVmSchedulerTimeSharedOverSubscription(peList),
    new PowerModelLinear(config.mips[hostType], 350) // power capacity
    );

    hostList.add(host);
    }

    Log.printLine("Created " + numberOfHosts + " hosts for " + dcType +
    " with specs: MIPS=" + Arrays.toString(config.mips) +
    ", RAM=" + Arrays.toString(config.ram));
    return hostList;
    }

    public static List createVmList(int brokerId, int numberOfVms) {
    List vmList = new ArrayList<>();

    for (int i = 0; i < numberOfVms; i++) {
    int vmType = i % VM_MIPS.length;

    List peList = new ArrayList<>();
    for (int j = 0; j < VM_PES[vmType]; j++) {
    peList.add(new ContainerPe(j,
    new ContainerPeProvisionerSimple(VM_MIPS[vmType])));
    }

    ContainerVm vm = new PowerContainerVm(
    IDs.pollId(ContainerVm.class),
    brokerId,
    VM_MIPS[vmType],
    VM_RAM[vmType],
    VM_BW,
    VM_SIZE,
    "Xen",
    new ContainerSchedulerTimeSharedOverSubscription(peList),
    new ContainerRamProvisionerSimple(VM_RAM[vmType]),
    new ContainerBwProvisionerSimple(VM_BW),
    peList,
    300 // scheduling interval
    );

    vmList.add(vm);
    }

    Log.printLine("Created " + numberOfVms + " VMs");
    return vmList;
    }

    public static List createContainerList(int brokerId, int numberOfContainers) {
    List containerList = new ArrayList<>();

    for (int i = 0; i < numberOfContainers; i++) {
    int containerType = i % CONTAINER_MIPS.length;

    Container container = new PowerContainer(
    IDs.pollId(Container.class),
    brokerId,
    CONTAINER_MIPS[containerType],
    CONTAINER_PES[containerType],
    CONTAINER_RAM[containerType],
    CONTAINER_BW,
    0L,
    "Docker",
    new ContainerCloudletSchedulerDynamicWorkload(
    CONTAINER_MIPS[containerType],
    CONTAINER_PES[containerType]
    ),
    300 // scheduling interval
    );

    containerList.add(container);
    }

    Log.printLine("Created " + numberOfContainers + " containers");
    return containerList;
    }

    public static List createCloudletList(int brokerId, int numberOfCloudlets) {
    List cloudletList = new ArrayList<>();

    // Create cloudlets with different utilization patterns
    Random rand = new Random();

    for (int i = 0; i < numberOfCloudlets; i++) {
    // Vary cloudlet length for workload diversity
    int cloudletLength = CLOUDLET_LENGTH + rand.nextInt(5000) - 2500;

    ContainerCloudlet cloudlet = new ContainerCloudlet(
    IDs.pollId(ContainerCloudlet.class),
    cloudletLength,
    CLOUDLET_PES,
    CLOUDLET_FILE_SIZE,
    CLOUDLET_OUTPUT_SIZE,
    new UtilizationModelFull(),
    new UtilizationModelFull(),
    new UtilizationModelFull()
    );

    cloudlet.setUserId(brokerId);
    cloudletList.add(cloudlet);
    }

    Log.printLine("Created " + numberOfCloudlets + " cloudlets with varied workloads");
    return cloudletList;
    }

    public static ContainerDatacenter createDatacenter(String name,
    List hostList,
    ContainerVmAllocationPolicy vmAllocationPolicy,
    ContainerAllocationPolicy containerAllocationPolicy) {

    String arch = "x86";
    String os = "Linux";
    String vmm = "Xen";
    double time_zone = getTimeZoneForDC(name);
    double cost = getCostForDC(name);
    double costPerMem = 0.05;
    double costPerStorage = 0.001;
    double costPerBw = 0.0;

    ContainerDatacenterCharacteristics characteristics =
    new ContainerDatacenterCharacteristics(arch, os, vmm, hostList,
    time_zone, cost, costPerMem, costPerStorage, costPerBw);

    try {
    ContainerDatacenter datacenter = new PowerContainerDatacenterCM(
    name,
    characteristics,
    vmAllocationPolicy,
    containerAllocationPolicy,
    new ArrayList(),
    300.0, // scheduling interval
    "MultiDC_Experiment",
    "./results/multi-dc/",
    120.0, // VM startup delay
    30.0 // Container startup delay
    );

    Log.printLine("Created datacenter: " + name + " with " + hostList.size() + " hosts");
    return datacenter;
    } catch (Exception e) {
    e.printStackTrace();
    return null;
    }
    }

    private static double getTimeZoneForDC(String dcName) {
    switch (dcName) {
    case "Datacenter_1": return 10.0; // Australia
    case "Datacenter_2": return -5.0; // US East
    case "Datacenter_3": return 1.0; // Europe
    default: return 0.0;
    }
    }

    private static double getCostForDC(String dcName) {
    switch (dcName) {
    case "Datacenter_1": return 4.0; // Premium
    case "Datacenter_2": return 2.5; // Standard
    case "Datacenter_3": return 1.5; // Budget
    default: return 3.0;
    }
    }

    public static void printMultiDCResults(List cloudletList,
    List datacenters) {
    String indent = " ";
    DecimalFormat dft = new DecimalFormat("###.##");

    Log.printLine("\n" + "=".repeat(80));
    Log.printLine("MULTI-DATACENTER SIMULATION RESULTS");
    Log.printLine("=".repeat(80));

    // Print datacenter summary
    Log.printLine("\nDATACENTER SUMMARY:");
    Log.printLine("Name" + indent + "Hosts" + indent + "Cost" + indent + "Time Zone");
    for (ContainerDatacenter dc : datacenters) {
    Log.printLine(dc.getName() + indent +
    dc.getHostList().size() + indent +
    dft.format(getCostForDC(dc.getName())) + indent +
    dft.format(getTimeZoneForDC(dc.getName())));
    }

    // Group cloudlets by datacenter
    Map> cloudletsByDC = cloudletList.stream()
    .collect(Collectors.groupingBy(ContainerCloudlet::getResourceId));

    // Print distribution across datacenters
    Log.printLine("\nWORKLOAD DISTRIBUTION:");
    for (ContainerDatacenter dc : datacenters) {
    int dcId = dc.getId();
    List dcCloudlets = cloudletsByDC.getOrDefault(dcId, new ArrayList<>());
    long successful = dcCloudlets.stream()
    .filter(c -> c.getCloudletStatus() == Cloudlet.SUCCESS)
    .count();

    Log.printLine(dc.getName() + ": " + dcCloudlets.size() +
    " cloudlets (" + successful + " successful)");
    }

    // Print detailed cloudlet information
    Log.printLine("\nDETAILED CLOUDLET RESULTS:");
    Log.printLine("Cloudlet ID" + indent + "DC ID" + indent + "VM ID" + indent +
    "Container ID" + indent + "Status" + indent + "Finish Time" + indent + "Cost");

    double totalCost = 0;
    for (ContainerCloudlet cloudlet : cloudletList) {
    String status = cloudlet.getCloudletStatus() == Cloudlet.SUCCESS ? "SUCCESS" : "FAILED";
    double cost = calculateCloudletCost(cloudlet, datacenters);
    totalCost += cost;

    Log.printLine(cloudlet.getCloudletId() + indent +
    cloudlet.getResourceId() + indent +
    cloudlet.getVmId() + indent +
    (cloudlet.getContainerId() != -1 ? cloudlet.getContainerId() : "N/A") + indent +
    status + indent +
    (cloudlet.getFinishTime() > 0 ? dft.format(cloudlet.getFinishTime()) : "N/A") + indent +
    dft.format(cost));
    }

    // Print summary statistics
    long successfulCloudlets = cloudletList.stream()
    .filter(c -> c.getCloudletStatus() == Cloudlet.SUCCESS)
    .count();

    double avgExecutionTime = cloudletList.stream()
    .filter(c -> c.getCloudletStatus() == Cloudlet.SUCCESS)
    .mapToDouble(ContainerCloudlet::getActualCPUTime)
    .average()
    .orElse(0.0);

    Log.printLine("\nSUMMARY STATISTICS:");
    Log.printLine("Total Cloudlets: " + cloudletList.size());
    Log.printLine("Successful Cloudlets: " + successfulCloudlets);
    Log.printLine("Success Rate: " + dft.format((successfulCloudlets * 100.0) / cloudletList.size()) + "%");
    Log.printLine("Average Execution Time: " + dft.format(avgExecutionTime) + " seconds");
    Log.printLine("Total Cost: $" + dft.format(totalCost));
    Log.printLine("=".repeat(80));
    }

    private static double calculateCloudletCost(ContainerCloudlet cloudlet,
    List datacenters) {
    if (cloudlet.getCloudletStatus() != Cloudlet.SUCCESS) return 0.0;

    // Find the datacenter for this cloudlet
    for (ContainerDatacenter dc : datacenters) {
    if (dc.getId() == cloudlet.getResourceId()) {
    double costPerSec = getCostForDC(dc.getName());
    return cloudlet.getActualCPUTime() * costPerSec / 3600.0; // Convert to hourly cost
    }
    }
    return 0.0;
    }

    // Configuration class for datacenter specifications
    private static class DCConfig {
    int[] mips;
    int[] ram;
    int[] pes;
    int[] bw;

    DCConfig(int[] mips, int[] ram, int[] pes, int[] bw) {
    this.mips = mips;
    this.ram = ram;
    this.pes = pes;
    this.bw = bw;
    }
    }
    }

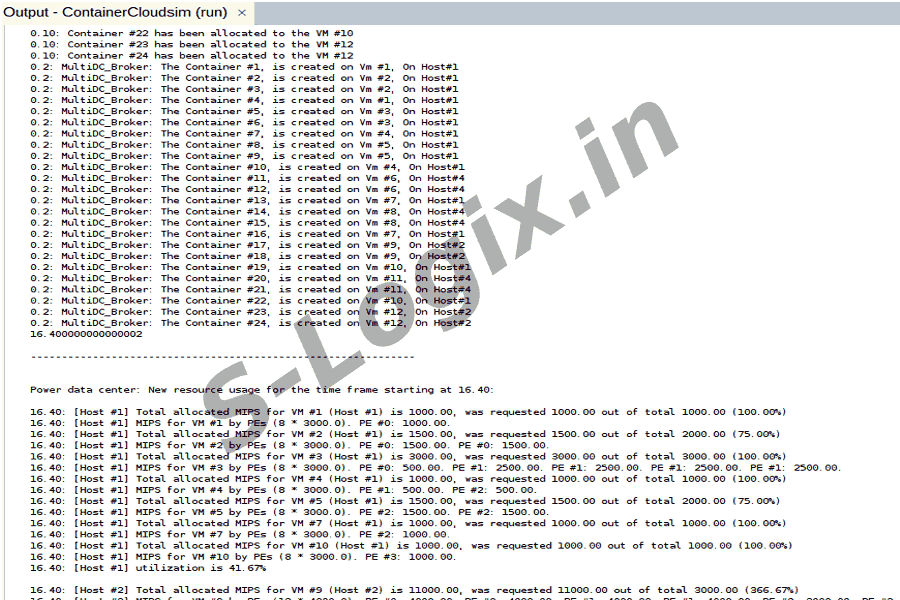

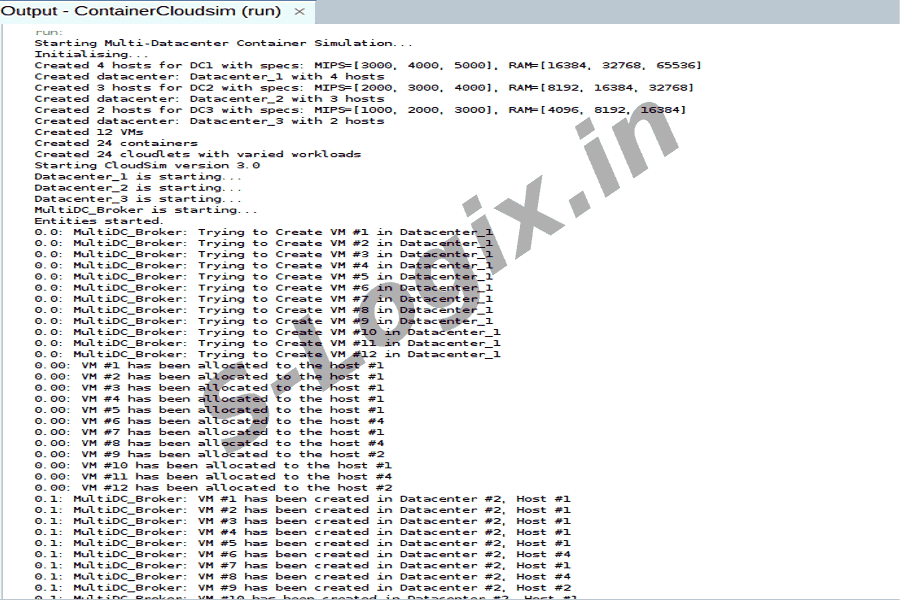

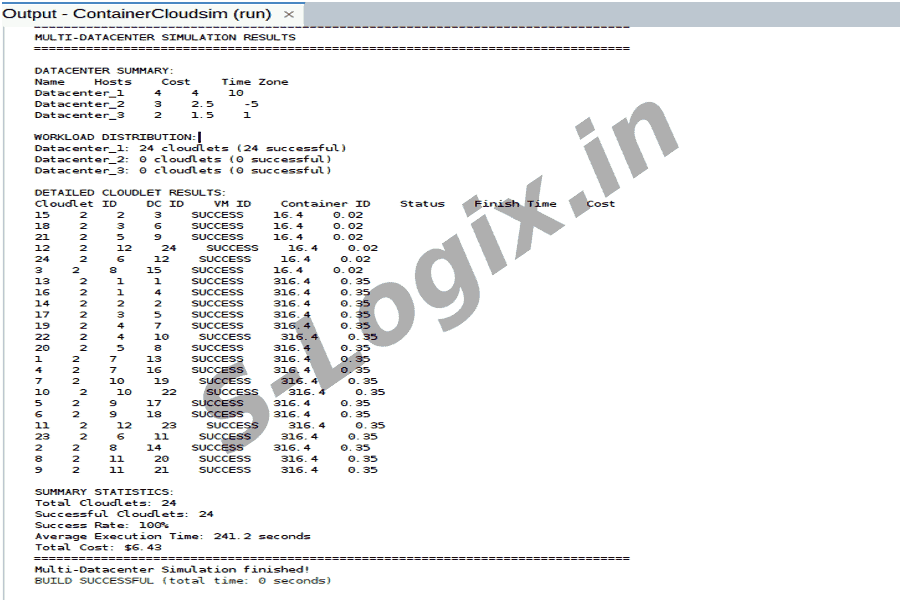

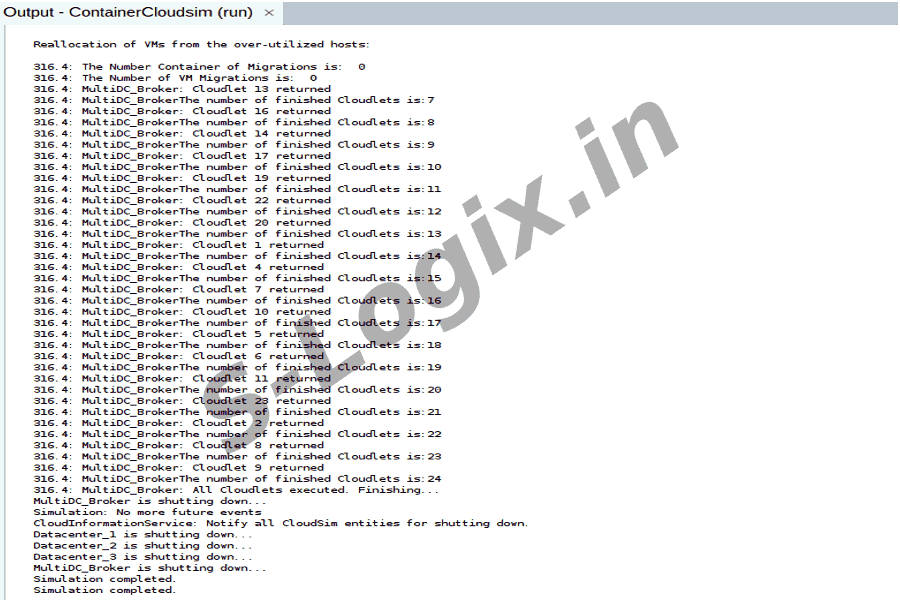

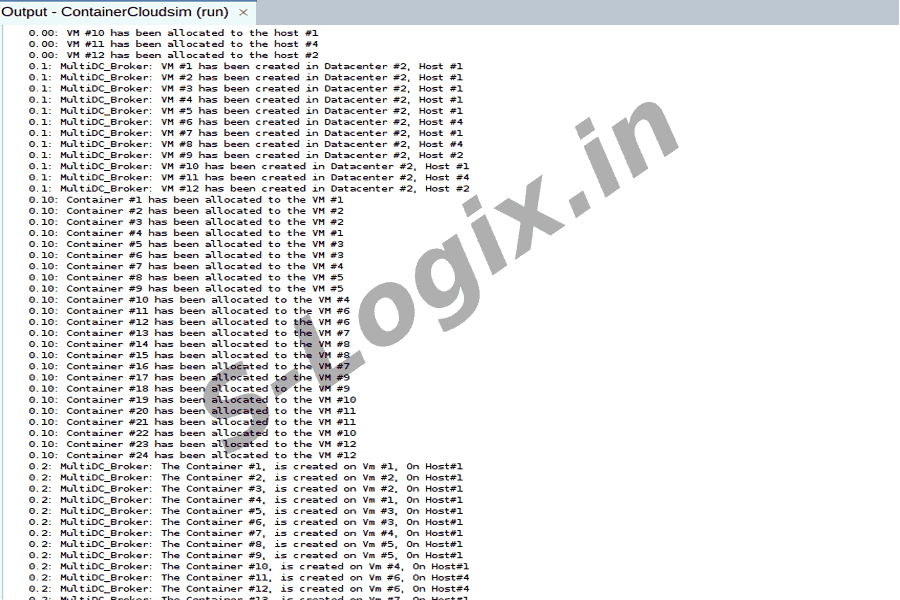

Screenshots
  • 23
  • 24
  • 25
  • 26
  • 27

List
