How to Deploy an Http Apache Web Server on a Local Kubernetes Custer (Minikube)?

Condition for Deploy an Http Apache Web Server on a Local Kubernetes Custer (Minikube)

Description:
An Apache HTTP Server is deployed on Kubernetes using a Deployment named apache-deploy with 2 replicas, ensuring high availability and automatic management of pods. A ClusterIP service named apache-service is created to expose the Apache pods internally within the cluster on port 80, allowing other pods to communicate with the server.Verification is done by creating a temporary debug pod with curl to test the service internally using curl http://apache-service. For external access, port-forwarding is used (kubectl port-forward service/apache-service 8088:80), mapping the local port 8088 to the service port, allowing the Apache default page to be viewed in a web browser at http://localhost:8088. This setup demonstrates internal service communication, pod management, and temporary external access using port-forwarding.
Requirements
Deployment name: apache-deploy
Image: httpd:latest
Replicas: 2
Service name: apache-service
Service type: ClusterIP
Port: 80 → targetPort: 80
Verify using kubectl exec and curl inside the cluster

Steps

STEP 1 — Create Deployment

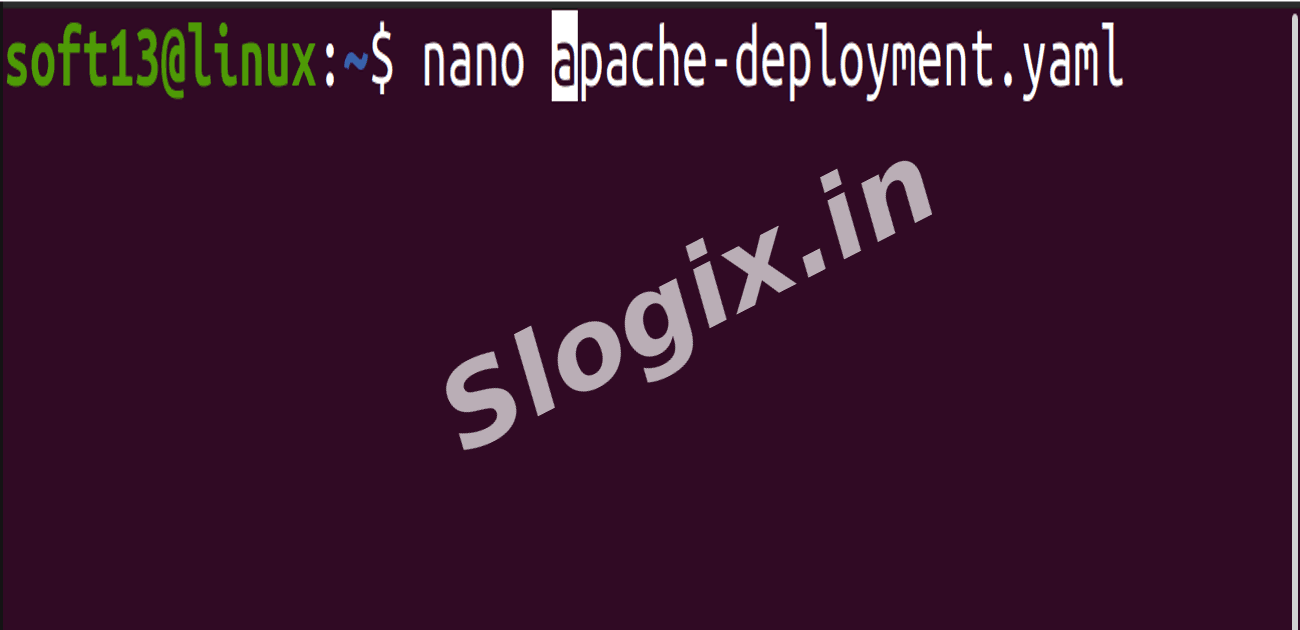

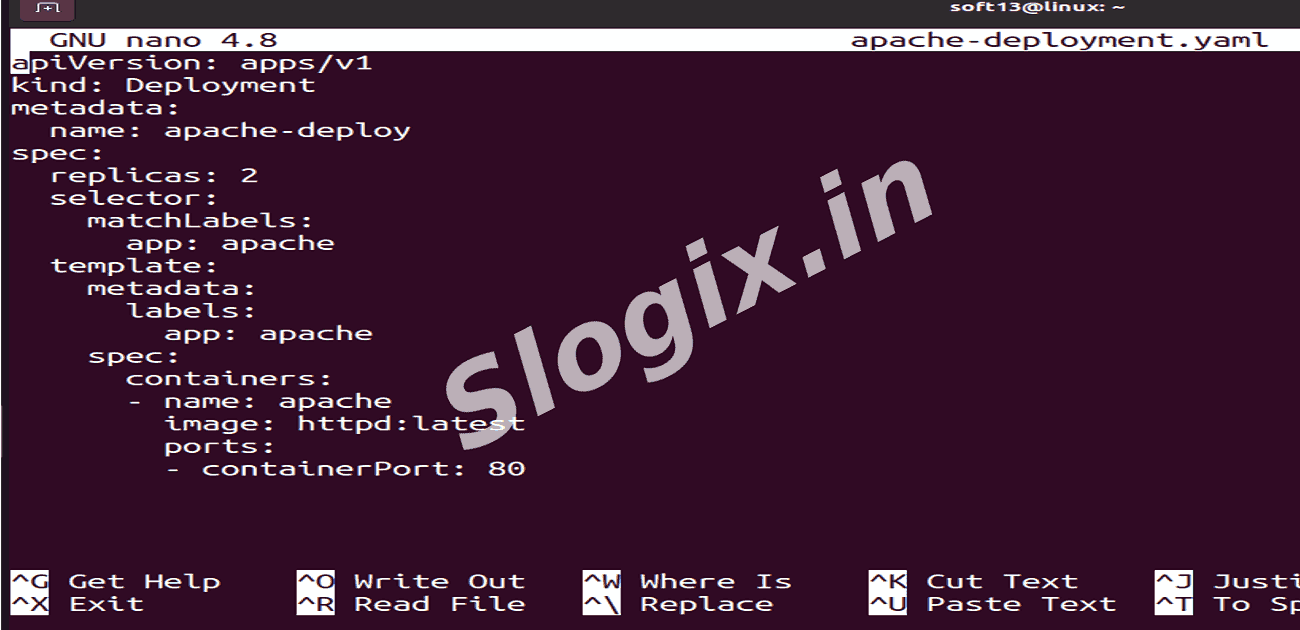

Create a file apache-deployment.yaml:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: apache-deploy
spec:
  replicas: 2
  selector:
    matchLabels:
      app: apache
  template:
    metadata:
      labels:
        app: apache
    spec:
      containers:
      - name: apache
        image: httpd:latest
        ports:
        - containerPort: 80

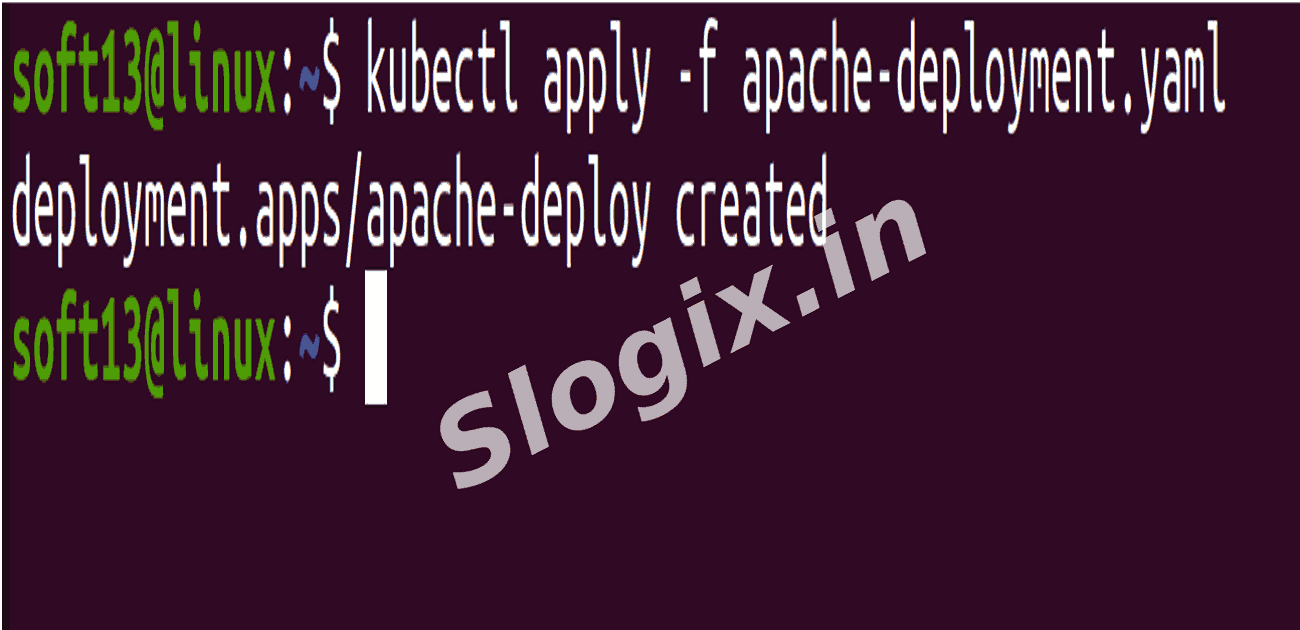

Apply the deployment:

kubectl apply -f apache-deployment.yaml

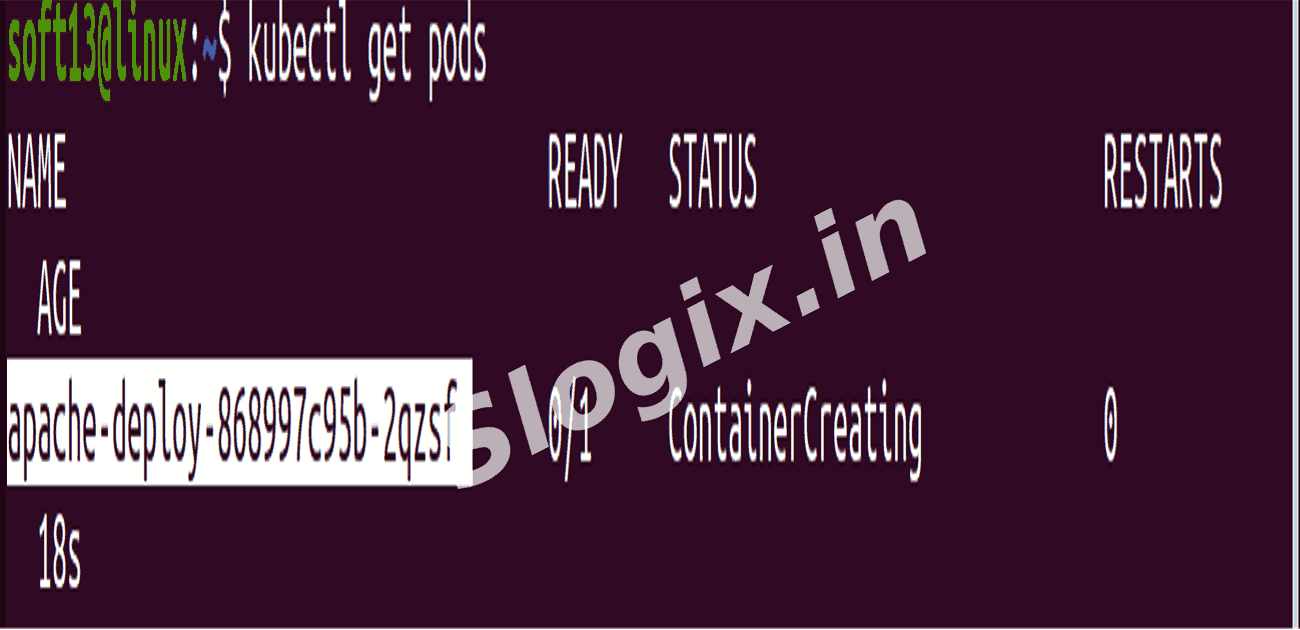

Check pods:

kubectl get pods

You should see 2 running Apache pods.

STEP 2 — Create ClusterIP Service

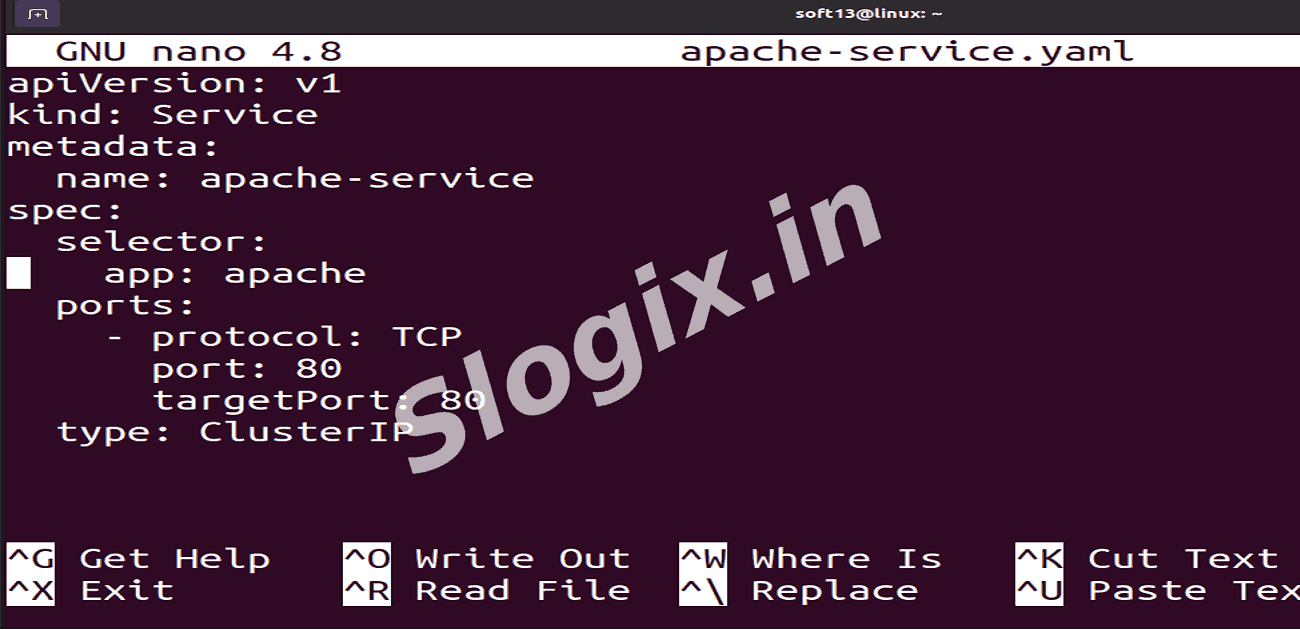

Create a file apache-service.yaml:

apiVersion: v1
kind: Service
metadata:
  name: apache-service
spec:
  selector:
    app: apache
  ports:
    - protocol: TCP
      port: 80
      targetPort: 80
  type: ClusterIP

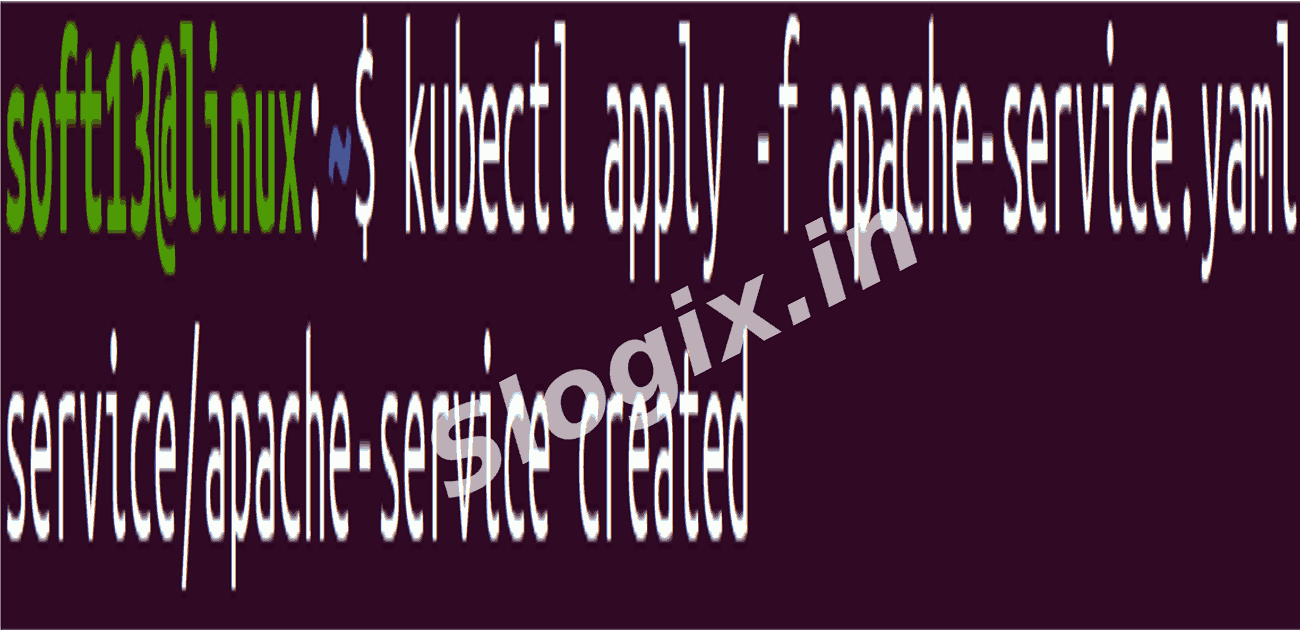

Apply the service:

kubectl apply -f apache-service.yaml

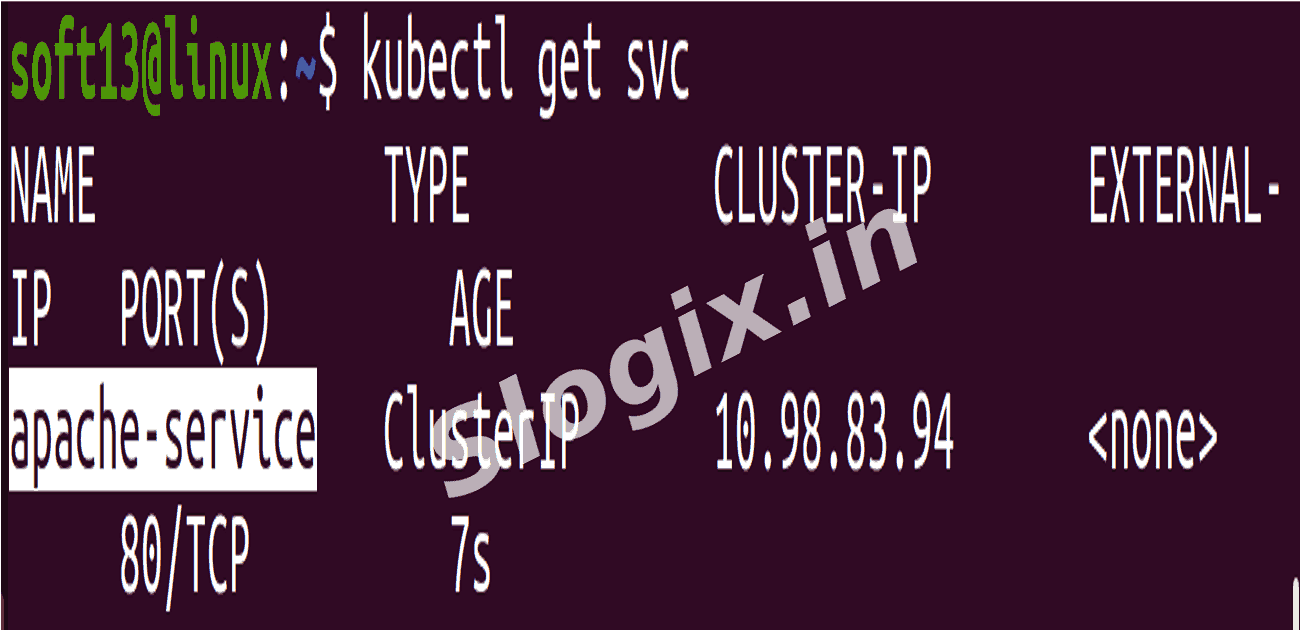

Check the service:

kubectl get svc

You should see apache-service with a ClusterIP.

STEP 3 — Verify Inside the Cluster
Enter any pod (you can use one of the Apache pods or create a temporary pod):
```

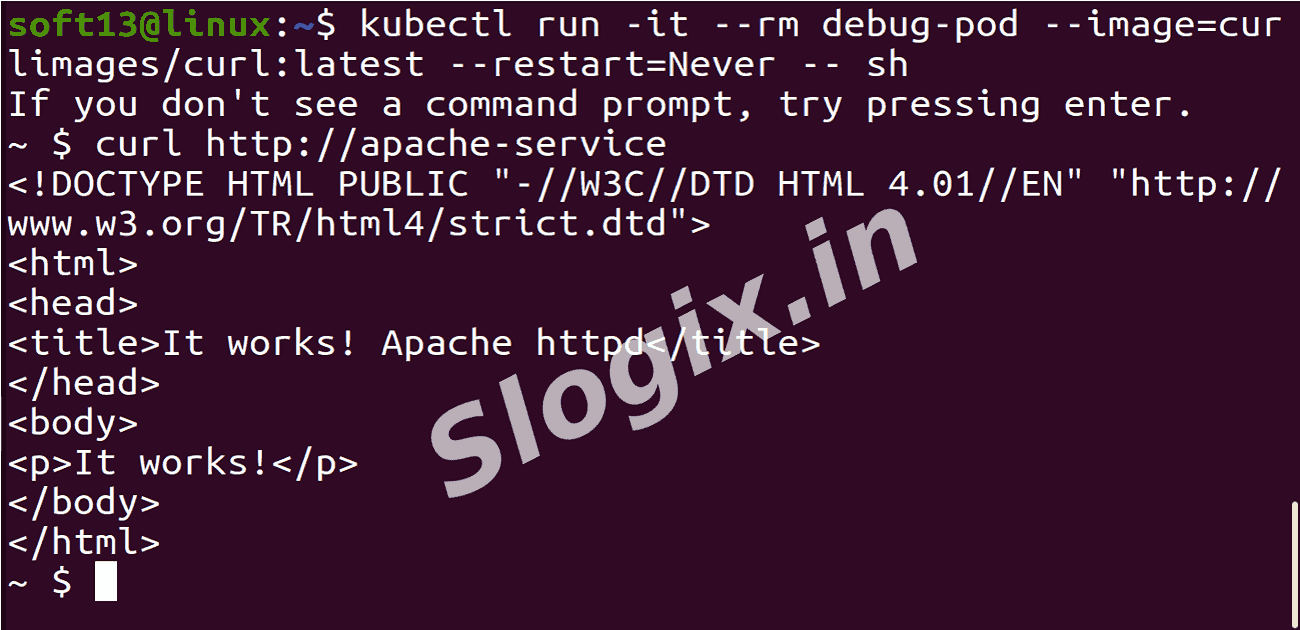

kubectl run -it --rm debug-pod --image=curlimages/curl:latest --restart=Never -- sh

```
Inside the pod, test the service using curl:
```
curl http://apache-service

```
You should see the default Apache HTTP Server page HTML.

Exit the debug pod:
```
exit

```
STEP 4 — Test Using Port-Forwarding (Quickest for local testing)
```

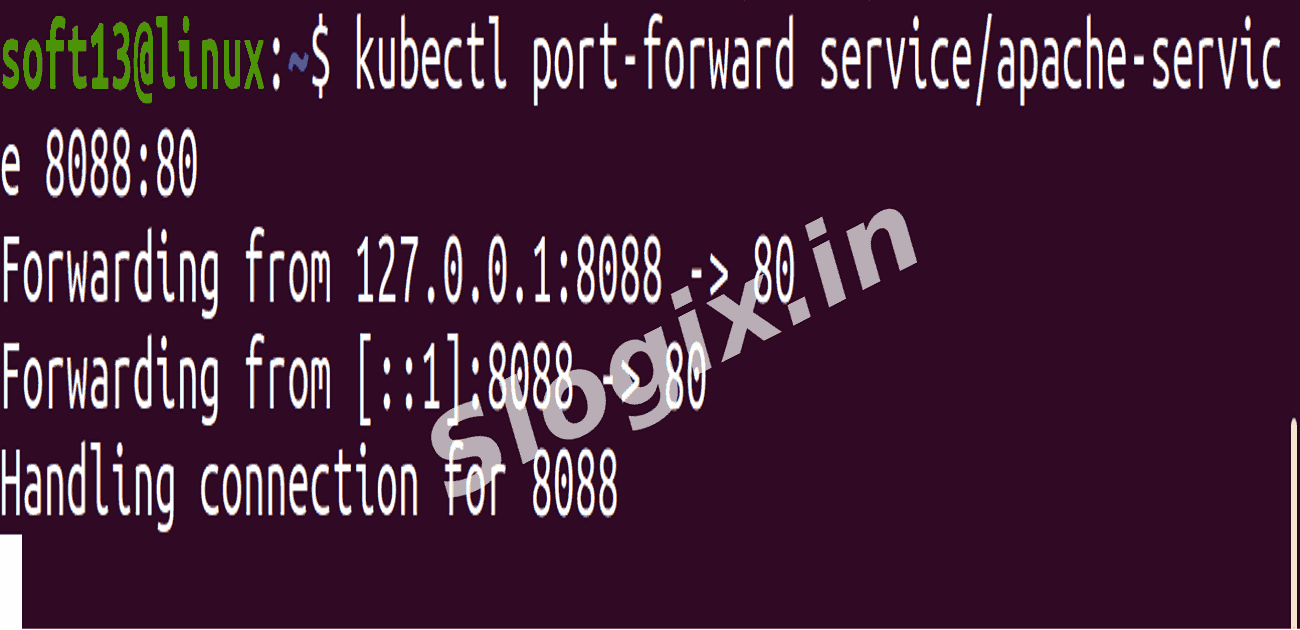

kubectl port-forward service/apache-service 8088:80

```
This maps local port 8088 → service port 88.

Now open a browser and go to:
```
http://localhost:8088

```
You should see the Apache HTTP Server default page.
