How to Create the IOT network Scenario Using Contiki-NG?

Create the IOT network Scenario Using Contiki-NG

Develop IOT network scenario using Contiki-NG in Ubuntu

  • Description:
    This sample shows how to run Contiki NG, a network simulator. First, make sure you have Contiki NG installed. Ensure the right Java virtual machine is installed along with Ant, the right environment variables are set, and the Cooja submodule is downloaded. Go to the Cooja directory, build and start it with ant.
    Steps for the create the IoT network scenario
Step-1
  • Go to contiki-ng/tools/cooja in terminal.
  • Then give command ant.
  • Go to File option select New Simulation.
Step-2
  • Create new simulation
    Create new simulation
Step-3
  • Network simulation is created
    The network simulation is created
Step-4

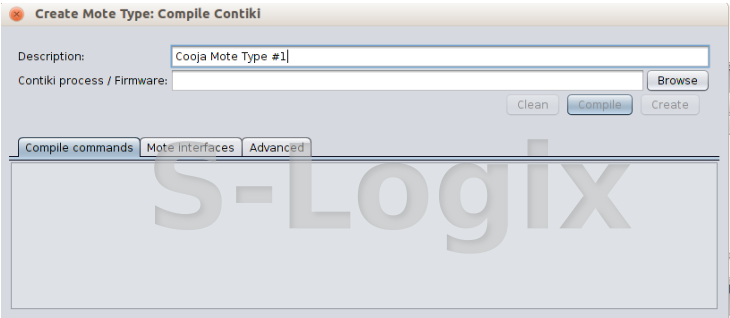

  • Then go to mote option select add motes and give create new mote type and select cooja mote.
    Git submodule update and Installation
Step-5
  • Select any file for simulation then give clean and compile.
  • Select create option
    Git submodule update and Installation
Step-6

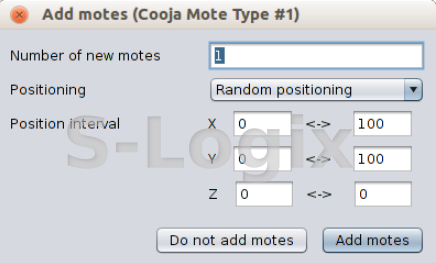

  • Now add motes and positioning.
    Select add motes and give create new mote
Step-7

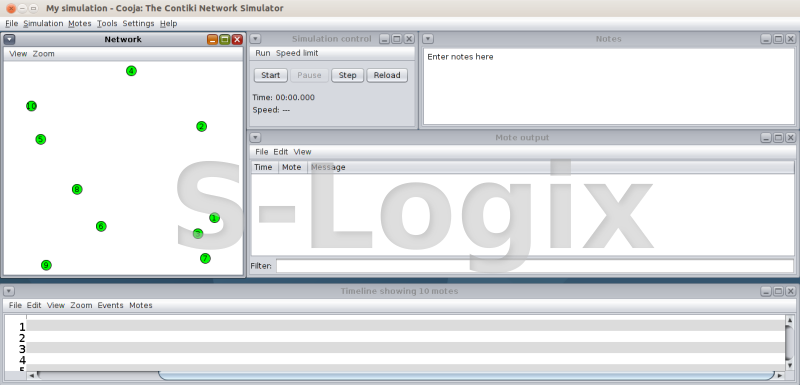

  • Now the nodes are deployed in the network area.
    The nodes are deployed in the network area
  • Output of the contiki-NG cooja simulation
